This machine is suitable for mixing dry-powder material of pharmaceutical, chemical and food industries. It is used in mixing evenly and quickly between different proportion and fineness of materials. The working principles when the machine is in operation. Because of the running actions of the mixing tank in multi direction, the now and derision of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio caning due to the centrifugal force in the normal mixer and extremely good effect can be obtained. Series Multi directional Movement Mixer consists of the base, driving system. Electric control system, multi-directional, movement mechanism and mixing tank. The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished. Because the nixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing iceberg than that of the normal mixer. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean. The materials are mixed in an enclosed state. With no contamination to the working environment and materials.
Technique Parameter:
| Model | 10 | 50 | 100 | 200 |
| Barrel capacity(L) | 10 | 50 | 100 | 200 |
| Capacity max(L) | 8 | 40 | 80 | 160 |
| Capacity weight(kg) | 5 | 25 | 50 | 100 |
| Speed of mine shaft | 0-15(r/min) | 0-15(r/min) | 0-15(r/min) | 0-15(r/min) |
| Motor power(kw) | 0.55 | 1.1 | 1.5 | 2.2 |
| Overall size(mm) | 800*1200*1000 | 1000*1400*1200 | 1200*1700*1500 | 1400*1800*1600 |
| Weight (kg) | 200 | 300 | 500 | 800 |
| Model | 300 | 400 | 500 | 600 |
| Barrel capacity(L) | 300 | 400 | 500 | 600 |
| Capacity max(L) | 240 | 320 | 400 | 480 |
| Capacity weight(kg) | 150 | 200 | 250 | 300 |
| Speed of mine shaft | 0-15(r/min) | 0-15(r/min) | 0-15(r/min) | 0-15(r/min) |
| Motor power(kw) | 4 | 4 | 5.5 | 5.5 |
| Overall size(mm) | 1800*1950*1800 | 1800*2100*1950 | 1900*2000*2100 | 1900*2100*2250 |
| Weight (kg) | 1000 | 1200 | 1380 | 1500 |
| Model | 1000 | 1200 | 1500 |
| Barrel capacity(L) | 1000 | 1200 | 1500 |
| Capacity max(L) | 800 | 950 | 1200 |
| Capacity weight(kg) | 500 | 600 | 750 |
| Speed of mine shaft | 0-15(r/min) | 0-15(r/min) | 0-15(r/min) |
| Motor power(kw) | 7.5 | 11 | 15 |
| Overall size(mm) | 2250*2600*2600 | 2400*2800*2800 | 2500*2950*3000 |
| Weight (kg) | 2500 | 2800 | 3000 |
Our Services
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2).Warranty time: All machines are guaranteed for one year.
(3).Any problem: If you have any questions or any demands, we will reply you within 24 hours except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.

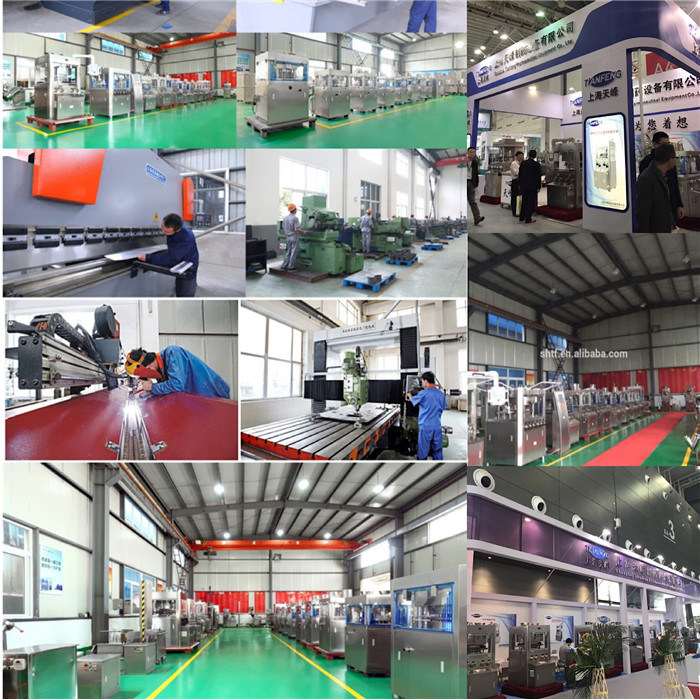

Company Information
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard.We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
Our products sells well throughout China and Southeast Asia. The products have won good reputation and praises among all customers, from at home and abroad. The management motto of our company is "Develop through quality; strive for survival through quality".
Packaging & Shipping
| wooden case/plywood; Or with container based order quantity |
