7.5KW Oil Paint Production High Speed Dissolver Mixer High Shear Mixer
High shear emulsifier mixer is efficient, rapid and uniform a phase or more of the phase distribution to another continuous phase, and in the usual case each phases are mutually insoluble. Due to the rotor is generated by high speed rotation high tangent speed and high frequency mechanical effect bring strong kinetic energy, so that immiscibility of solid phase,liquid phase and gas phase in the corresponding mature technology and right amount under the common function of additives, the instant uniform fine disperse emulsion, after high frequency move in circles, ultimately get the steady and high quality products.
Intermittent type high shear work process: In the high speed rotating rotor produced under the function of centrifugal force, and the material from the work of the head and the up and down feeding area at the same time from axial suction work cavity strong centrifugal force will material from the radial swing rotor and stator narrow gap between the precision. At the same time by centrifugal extrusion, impact and so forth function force, make a preliminary material dispersed emulsion. After adjustment rotating rotor outer end produce at least 15m/s more line speed, the highest can to 40m/s, and the formation of strong machine and hydraulic force shear,liquid layer friction,impact tear, make the material full dispersing,emulsifying,uniform,crushing, at the same time through stator slot injection. Material constant high speed from radial injection, in the material itself and the walls of the container under the resistance change flow direction, at the same time in rotor region of the upper and lower under the action of axial force, again form the upper and lower two strong flipping out of flow. Material after several circulation, finally complete dispersing,emulsion, homogeneous process.
Laboratory emulsifier mixer main use:
Mix:syrup,shampoo,clean solution,juice concentrate,yogurt,desserts,mix milk products,printing ink.
Emulsion:medicine lotion,ointment,face mask,emulsion flavor,oil-water emulsion,emulsion asphalt,resin emulsion,wax emulsion and pesticide.
Homogeneous:medicine lotion,ointment,face mask,tissue homogenate,dairy products homogeneous,fruit juice,printing ink and jam.
With a high speed rotation ,which is 2800 rotations per minute .The rack can be lift up and down.It's most suitable for middle-scale or small plant.
- Pneumatic control or Electric control
- Wide suitability
- High filling accuracy
- Labor saving
- Easy to use and maintain
Product features view video above
Precautions for Use and Maintenance:
1. When the lifter is in use, the work surface should be kept horizontal.
2.When operating the machine at outdoors and in a poor environment, the user should use a safety rope.
3.During lifting, it is forbidden to climb the machine.
4.The fixed hydraulic lifter must not move after being lifted. No lifting operation is allowed when the four legs are not tightened.
5.It is forbidden to overload during use, and the contained items should be properly placed.
6.The hydraulic oil used should be kept clean and must not be mixed with water and other impurities. It is usually replaced every six months.
7. During maintenance or when there is a fault, the power supply should be cut off in time, and the lifter should be fixed firmly after lifting to perform other operations.
|material connect material||SUS304|
|Material of frame||iron or stainless steel|

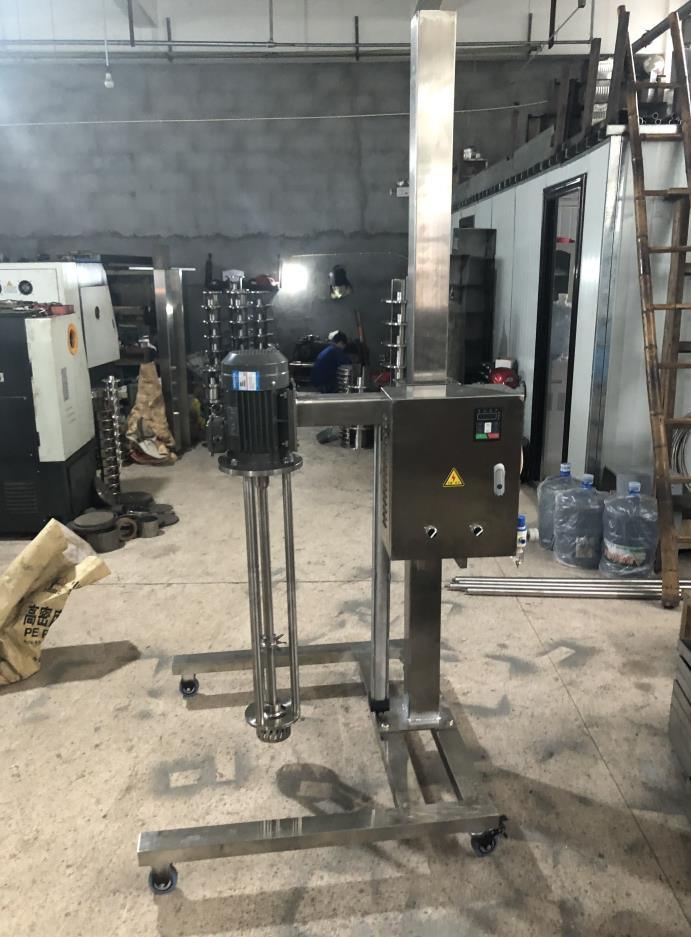

The height of homogenizer can be lifted
|Q1||Are you trade or manufacturer?|
We are a factory with an international sales company specialized in support for global distributors.
|Q2||Can you provide instant technical consulting services?|
|A||We are able to discuss technical details and offer suggestions over the phone in English.|
You can get the answers in minutes, instead of days.
What's the difference between Ready-To-Ship and Customized products?
Some of RTS standard products are in stock and ready to ship in 2-3 days.
|Q4||What is the payment terms?|
We accept Alibaba Trade Assurance Order, also can T/T and L/C.
|Q5||How to choose the shipment way?|
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
How about the after-sales service?
|A||Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.|
