high quality china lotion mixer vacuum mixer emulsification mixer for cosmetic cream machine

Production of each machine in belowSemi-automatic production line,Water treatment → EDI,ultraviolet(alternative)→ water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic cappin

Featured Products

Production of each machine in below
Semi-automatic production line,

Water treatment → EDI,ultraviolet(alternative)→ water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic capping machine → semi-automatic labeling machine → ink printer → conveyor(alternative)
Fully automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → automatic filling and capping machine → automatic labeling machine → ink printer

High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Mixing Equipment
Mixing is an important part of pharmaceutical cream production. Operations can include dissolving solids and powders, preparing emulsions, combining raw materials, enabling chemical reactions, and milling active pharmaceutical ingredients (APIs), to name a few. Efficiency and accuracy are key when in the mixing process to ensure dosage accuracy, stability, appearance, and texture. Therefore, selecting the proper type of mixer for the right application is an important part of the instrumentation process.
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine

High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Hydraulic Lifting and Tilting System are used for material discharge and cleaning, easy and convenient operation
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Electric Cabinet
SUS304 control panel: button / PLC touch screen (option)
Ampere meter, Voltmeter
Real-time Temperature display
Mixing system control (frequency control)
Vacuum system control
Hydraulic lifting system control
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Water and Oil Pot
Machine equipped A set of water and oil pot
Water pot capacity: 10-5000l, Oil pot capacity: 10-5000l
Power: 0.37-22kw, Siemens motor, Speed: 1440RPM
Electric heating by Water or Conduction Oil
Mixing: High shearing DISPERSER plates with baffle on wall
Half open hinged lid for easy operation

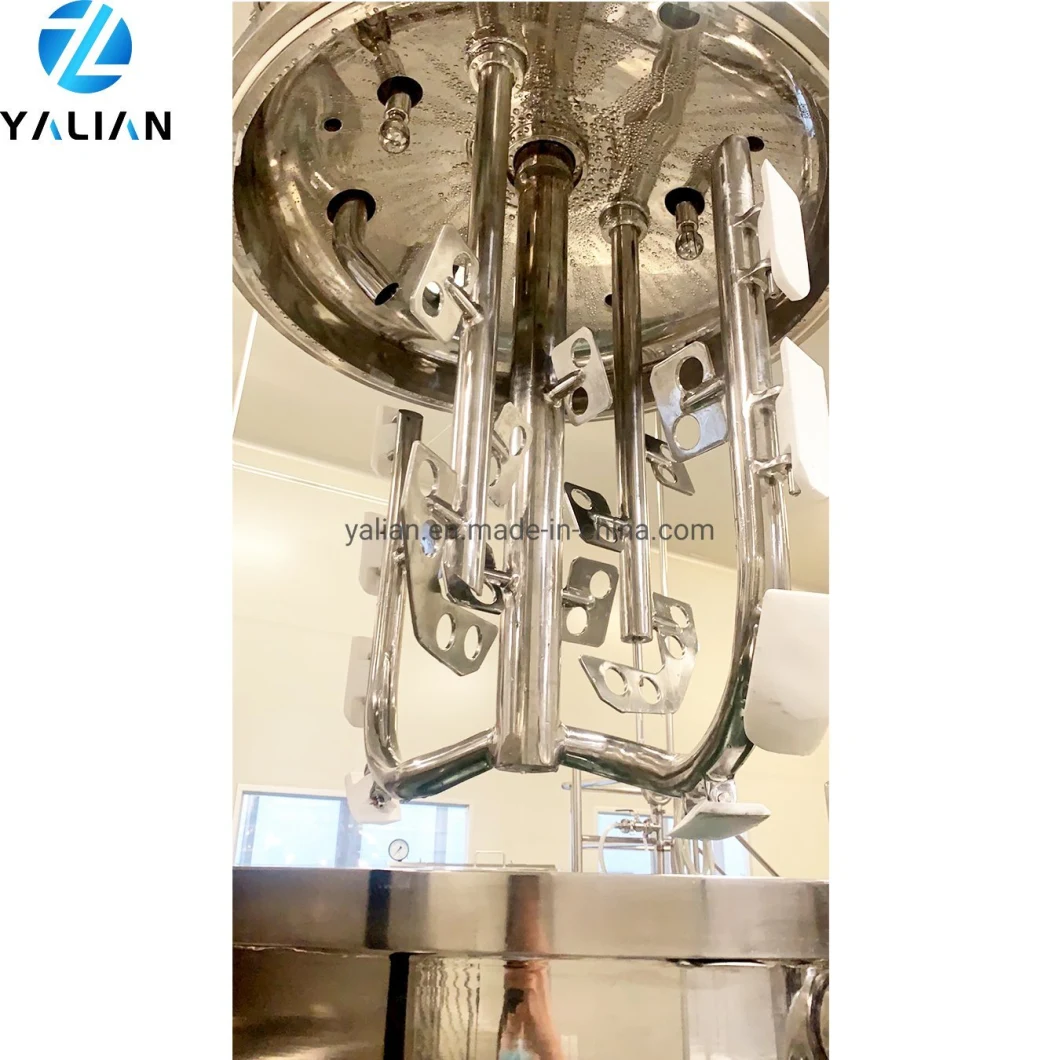

Frame Wall Scrapper Mixer
SUS316L Wall scrapper mixerPTFE scraper
Fixed propeller, 45degree blades on opposite angles to make sure mixture complete
Siemens motor drive, 0-65rpm with variable speed controlTWO WAYS wall scrapper mixer
HELIX scrape mixer(OPTION)
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine

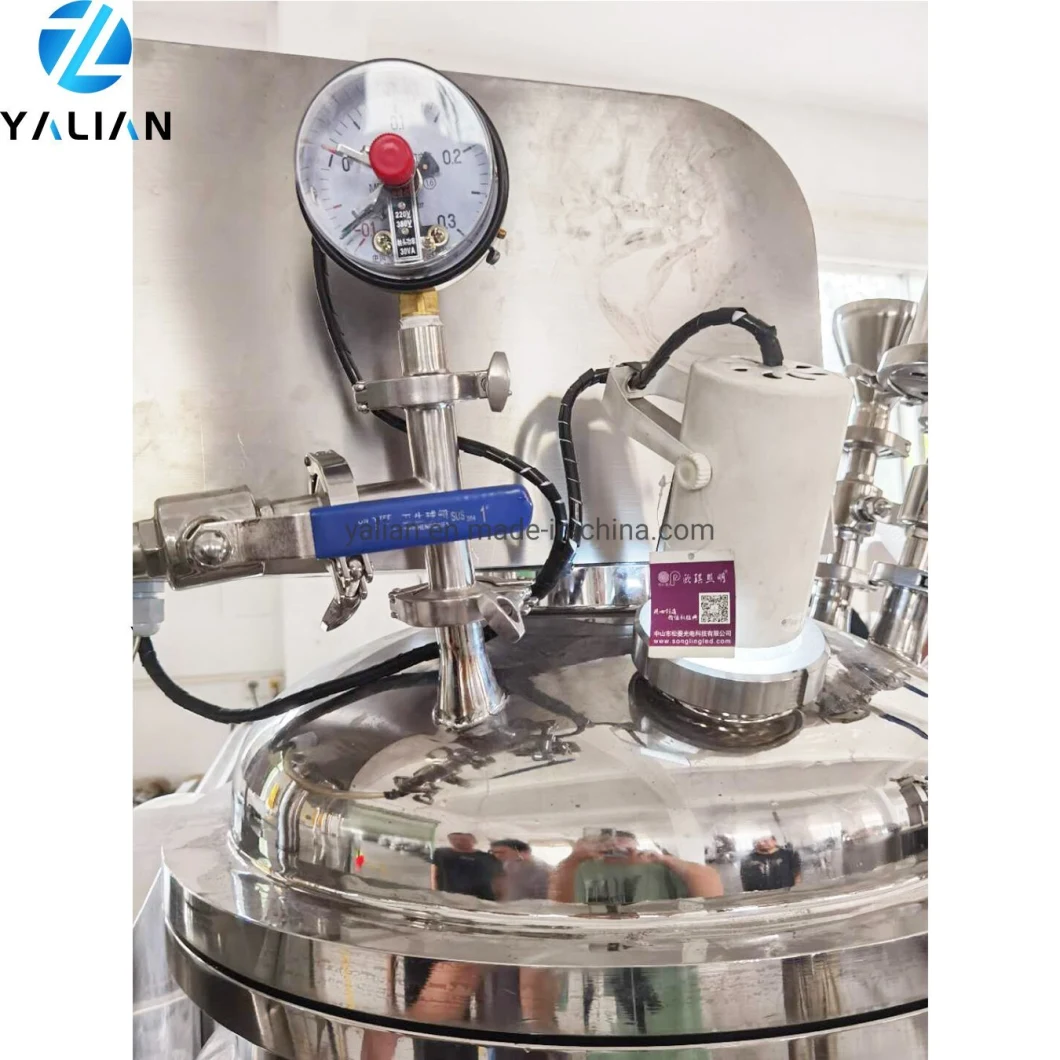

Lid Parts
Material suction inletVacuum presssure gauge
Vacuum port, Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball, LED Light
Sight window
Why the tank with homogenizer is best ?
Emulsification is the process of mixing two liquids that are difficult to mix. The main purpose of emulsification is to disperse the discontinuous phase into smaller droplets. The rotor-stator device is particularly suitable for emulsification tasks. The combined action of high shearing force and high expansion force in the mixing head makes the droplets small. In addition, the large turbulence enables the rotor-stator device to help transport emulsifier molecules quickly to the reformed surface.
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Lifting vacuum emulsifier
The lifting external circulation vacuum emulsifier is specially designed by Planck for the production of products with high viscosity and high emulsification requirements in the cosmetics and pharmaceutical industries. Its biggest features are:
1. The material can be continuously emulsified in circulation;
2. Emulsify materials with high viscosity more thoroughly, without dead ends;
3. The external circulation emulsifier can replace the conveying pump for discharging, and can be cyclically cleaned.
The mixing adopts forward and reverse double scraping side mixing, with high-speed external circulation emulsifying head design.
Working principle:
After the materials are mixed and reacted by heating and stirring in the water pot and oil pot, they are sucked into the emulsifying pot by the vacuum pump, and stirred through the center of the upper part of the emulsifying pot. , So that the captured materials continuously produce new interfaces, and then through the cutting, compression, and folding of blades and rotating blades, they are stirred and mixed and flow down to the homogenizer below the pot body, and the materials are cut by high-speed rotation During the process of strong shearing, impact, turbulence, etc. between the wheel and the fixed cutting sleeve, the material is cut in the shearing seam and quickly broken into 200nm-2um particles. Because the emulsification pot is in a vacuum state, the material is The air bubbles generated during the stirring process are drawn away in time.
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
Characteristic
·With hydraulic lifting system, the lid can be raised and lowered freely.
·The mixing system adopts double scraping side mixing frequency conversion speed regulation, which can meet the production requirements of different processes.
·Advanced homogenizer, unique structure, reliable sealing (mechanical seal is German Burgman), emulsification speed is 0-3500 rpm (German Siemens frequency converter)
·The material is imported SUS304 or SUS316L stainless steel, and the tank and pipes are mirror-polished, which conforms to GMP specifications.
·Vacuum defoaming can make the materials meet the sanitary and aseptic requirements, and vacuum suction can be used to prevent dust from flying for powder materials.
·According to process requirements, the tank can heat or cool materials, and the heating method can be steam or electric heating according to customer requirements.
The standard configuration
Main bowl, water tank, oil tank
Vacuum pump and synchronous solenoid valve
Emulsifier and material filter
Hydraulic lifting system and mixing system
Stainless steel operating platform
Frequency converter and electric control box
DBI recyclable homogenizer
Company introduce :
Guangzhou Yalian is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
High Quality China Lotion Mixer Vacuum Emulsifying Mixer Blender for Cosmetic Cream Machine
RFQ:
1. Q: Are you a manufacturer or just a trading company?
A: Guangzhou Yalian cosmetics machinery equipment company is one of the top technology-oriented machinery manufacturer in China.
2. Q: I am new in this field , can you recommend the whole production line?
A: We can recommend you the whole production line depends on what products you will make:
(1). If for paste or cream product, the following machine we will recommend you:
RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(2). If for liquid product, the following machine we will recommend you:
RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(3). If for Perfume, the following machine we will recommend you:
RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc.,
(4). There are Full automatic production line and Semi automatic production line for your option.
3. Q: What is your payment term?
A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.
4. Q: What is your delivery day?
A: Our delivery day is about 15-30 days after receive the deposit.

5.Do you have requirement of capacity?
